Vangater Series - Lift for Wheelchair

Vangater Series - Lift for Wheelchair

The innovative Vangater at once solves the problem of wheelchair access and ambulatory entry with a power tri-folding platform. Over half the van's side door is available for easy ambulatory exit and entry when the handicapped lift is in the stowed position. But the touch of a button quickly unfolds the platform, revealing a fully functional wheelchair lift in a compact package.

The BraunAbility Vangater II Series lifts for wheelchairs are fully electric in operation, for both the fold/unfold and up/down cycles. Lift operation is controlled by the standard hand-held control, the on-lift controls, or the optional remote control.

The Vangater II Series is designed for installation in the side doors of domestic full-size vans. A model is also available for installation in minivans, see your dealer for details. With the compact tri-fold platform, the lift occupies minimal space inside the vehicle.
No Image Selected
More Info

Lift Features

Specifications

Platform


The Vangater Series lifts for wheelchairs offers 30" of usable width, and two platform usable lengths of 43" and 47". (47" platform can only be used in vans with lowered floors)



Outboard Roll Stop

Outboard Roll Stop


For your safety, the electric roll stop raises to the vertical position before the platform leaves the ground. Special sensors prevent the handicapped lift from raising if the roll stop is not fully engaged.



Hand-Held Control

Hand-Held Control


The standard hand-held control, controls all van lift functions. For greater convenience, an optional remote control system is available.



Folding Platform

Folding Platform


With the lift for a wheelchair in the stowed position, over half of the van's side door is available for ambulatory use as well as cargo.



Switch Arm

Switch Arm

The lift's switch arm features an up/down control, allowing the wheelchair user to control the handicapped lift while on the platform. The "level" switch adjusts the tilt of the platform as needed.

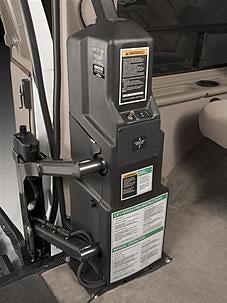

Control Tower

Control Tower


The dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.



Threshold Sensor Mat

Threshold Sensor Mat


If the threshold sensor mat is occupied when the handicapped lift platform is below vehicle floor level, lift operation will be prevented, and visual/audible warnings will alert passengers and attendants to unsafe conditions.



Optional Door Operators

Optional Door Operators


The optional automatic door operators give you complete control of your mobility. The doors can be opened and closed with all standard and optional van lift controls.



Specifications

Specifications

  • Lifting Capacity: 600 lbs.
  • Weight: 345 lbs.
  • Platform width: 30"
  • Platform Length: 43" & 47"

The Vangater II Series is VA accepted and fully NHTSA compliant.
